Model

• Model Name: HUELINE 16 IP
• Model Code: HL 16 IP

Light Source

• Light Source: 16 x 25W RGBWAC+UV LEDs
• Total Lumen Output of Fixture: 5,600 lumens
• Life Expectancy: 20,000 hours*
  *Source manufacturer specification

Optical System

• Beam Angle : 21°-49°
• Zoom Range: 45°-109°
• HCRI Mode: Ra≥92
• DMX Controllable Smart Glass technology:
• • Patent No. :
  • • CN216010577U
    • US11698183B1
    • DE202023101966U1
    • FR3134870B3

Control

• 4 touch button control panel
• Display: OLED display
• Protocols: DMX512,RDM,Art-Net,sACN
• DMX Protocol Modes: 2
• Control Channels: 16/133
• Firmware Upgrade: Upgrade via DMX link

Pan & Tilt

• Tilt Movement: 180° (mounted with the floor brackets)

Colors

• Linear CTO Color Correction: 2,500K-8,000K

Other Effects

• Smooth dimming 0-100% (4 user selectable dimming curves)
• Tungsten emulation

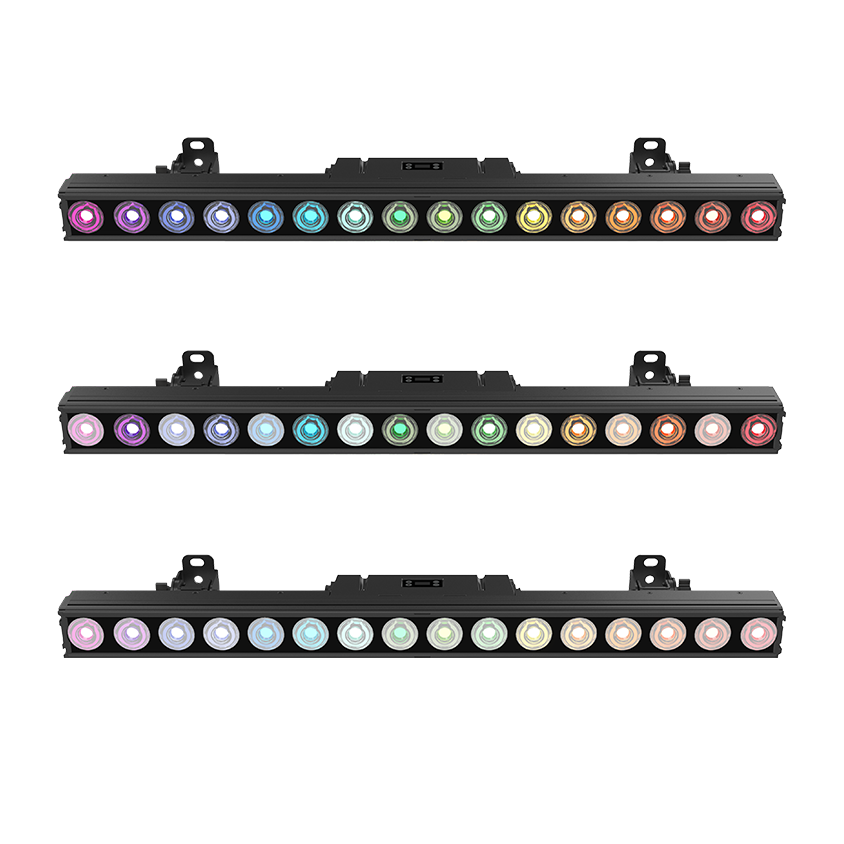

• Individual pixel control and built-in color macro effects
• 16 individually controllable LEDs, each with frost effects
• Outstanding color mixing
• Dimming Frequency: 12kHz
• With an ultra-narrow bezel, it achieves a 90% light-to-screen ratio for an expansive visual experience.
• Equipped with an inventive quick-release mechanism that allows you to quickly connect and align multiple fixtures

Electrical and Connectors

• Input Voltage Range: 100-240Vac; 50/60Hz
• Power Consumption: 190W
• Power In/Out: Waterproof power connector in/out
• Data In/Out: 3-pin or 5-pin waterproof XLR,waterproof RJ45 connector

Physical Information

• Fixture Dimensions:
• • Width: 1,002 mm (39.5")
  • Depth: 148 mm (5.8")
  • Height: 193 mm (7.6")
  • Weight: 9.6 kg (21.2 lbs)

Packing Information

• Flight Case Dimensions:
• • Width : 1,220 mm (48.0")
  • Depth : 610 mm (24.0")
  • Height : 845 mm (33.3")
  • Weight :
  • • Standard: G.W.: 159 kg (350.5 lbs) (ten-pack loader case)
    • North American Standard: G.W.: 170 kg (374.8 lbs) (ten-pack loader case)
• Carton Dimensions:
• • Width : 1,100 mm (43.5")
  • Depth : 265 mm (10.4")
  • Height : 185 mm (7.3")
  • Weight :
    G.W.: 11.5 kg (25.4 lbs) (one-pack loader carton)

Work Environment

• Maximum Ambient Temperature: 40°C
• Minimum Operating Temperature: -10°C
• Maximum Surface Temperature: 65°C
• Protection Rating: IP66

Approvals

• CE compliant
• UKCA compliant
• cETLus compliant

Installation

• Horizontal or vertical mounting
• 2 omega brackets

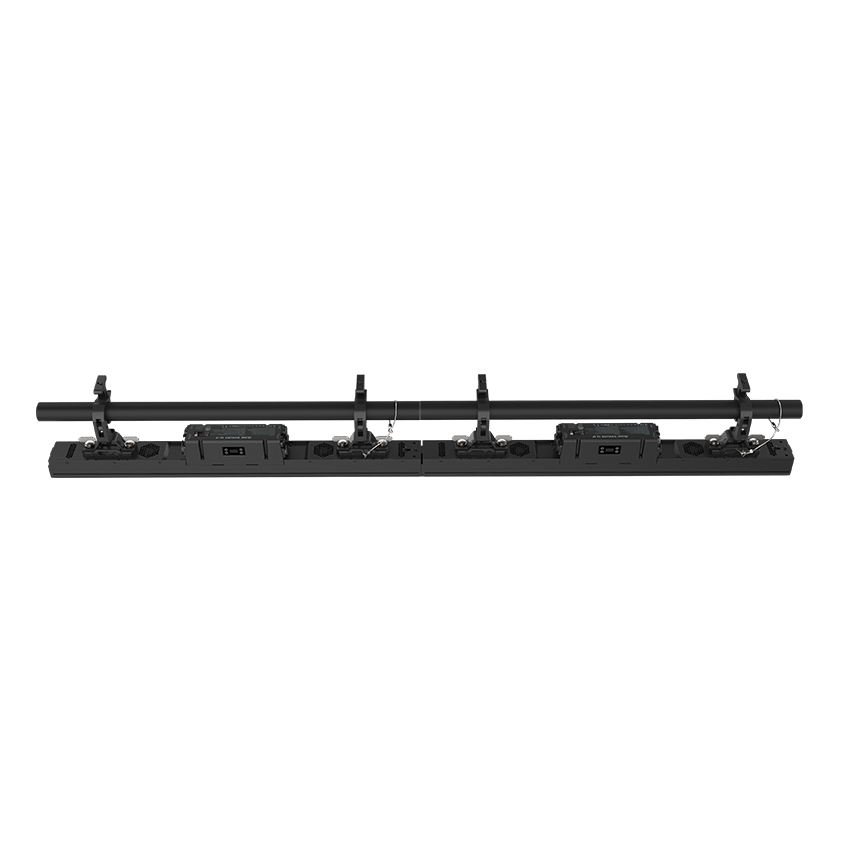

• Horizontal: Utilizing two brackets (supplied) and clamps (by others), a maximum of 5 fixtures may be connected
• Vertical: Using one hanging bracket (sold separately) with clamp (by others), a maximum of 3 fixtures may be connected
• Floor: Two floor brackets (supplied) may be attached to base of unit
• Vertical Stand: Mounted to floor stand (sold separately), stand single unit vertically, no other fixtures may be connected
• Safety cable attachment point

Included Items

• Digital user manual
• Power cable
• 2 omega brackets (3002003002)
• 2 floor brackets (63583845)

Optional Accessories (With Order Code)

• Flight Case:
• • Standard : Ten-pack loader case (63583828)
  • North American Standard : Ten-pack loader case (63583784)
• Clamp : C-250B (2060001632-B),C-300 (2060001000)
• Safety Cable: SW-05 (2060001603-A)
• Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)
• Hanging Bracket: 63582969
• Base Stand: 63582785
• Glare Shield: 63583846
• Diffuser Filter (40° x 20°): 3005006304
