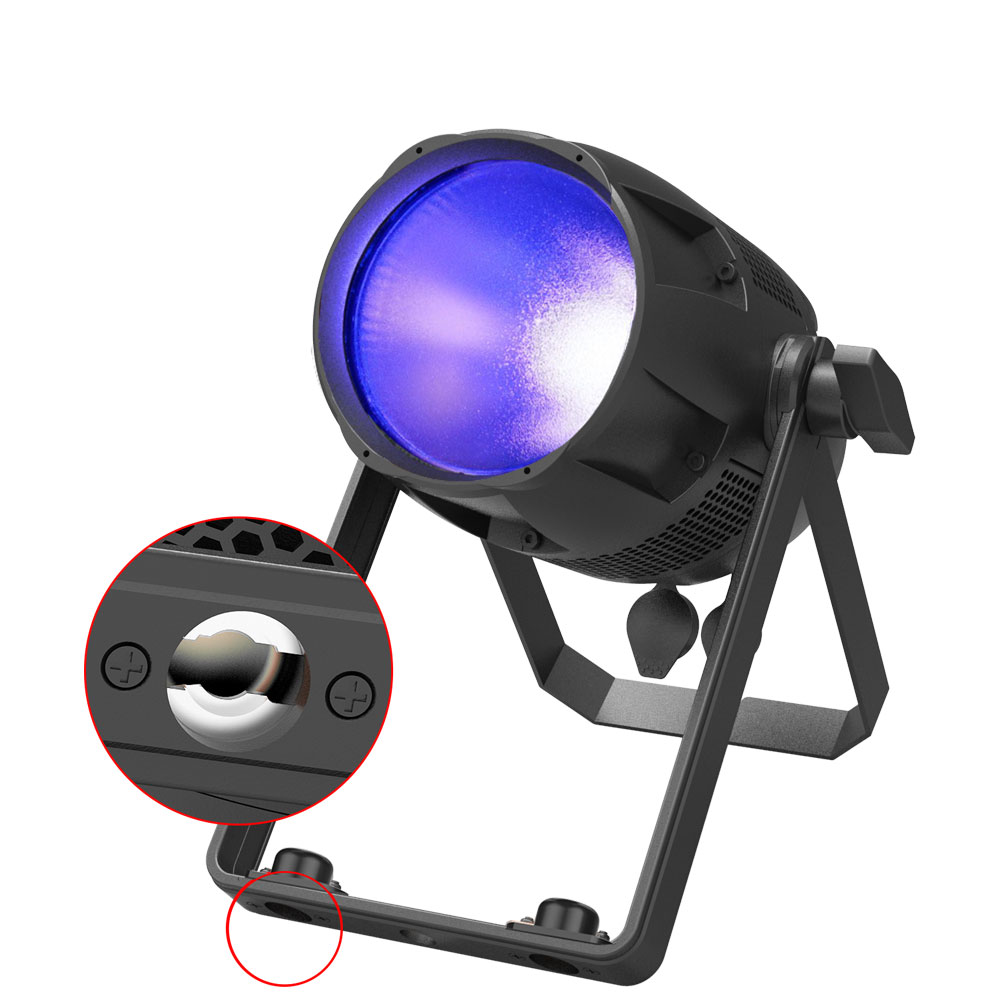

Model

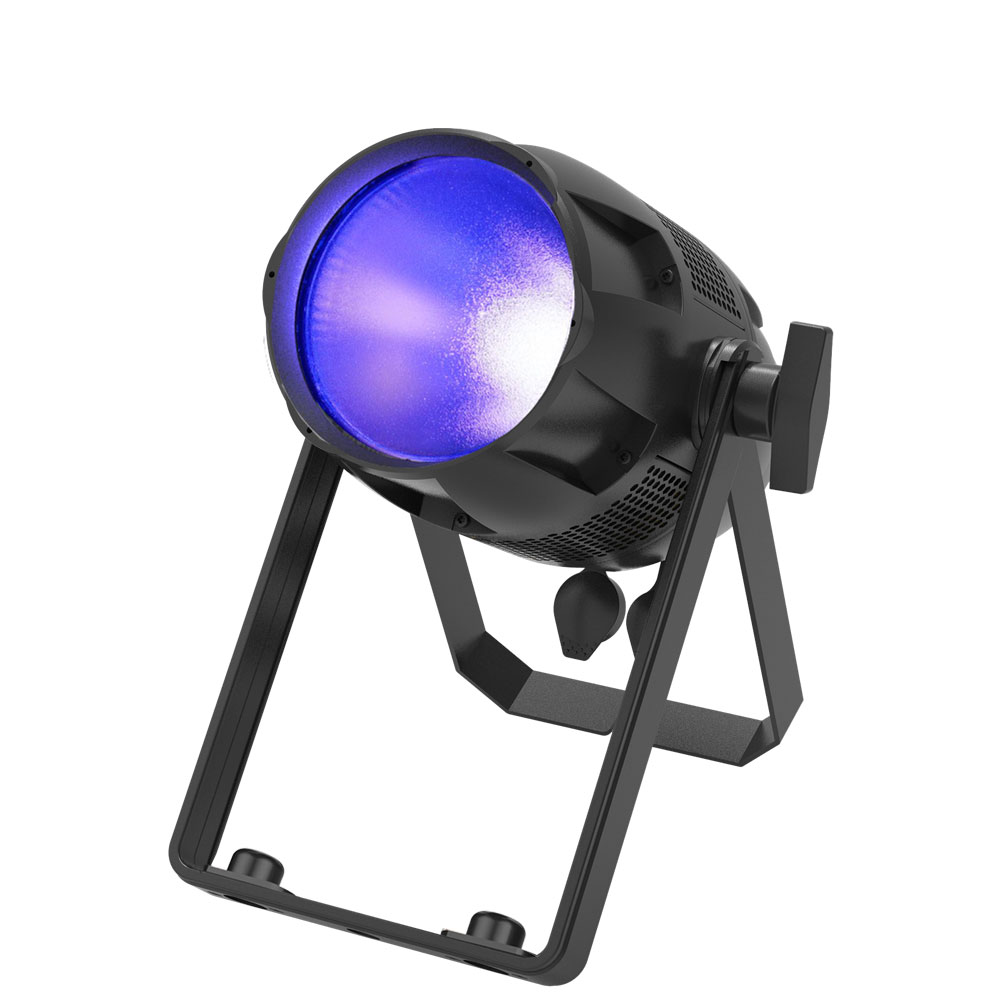

• BL-100 UV

Light Source

• Light Source: 50x365nm UV LED
• LED life expectancy: 10000 hours*
  *Source manufacturer specification

Optical System

• Advanced optical system to ensure clear and large-range wash effect

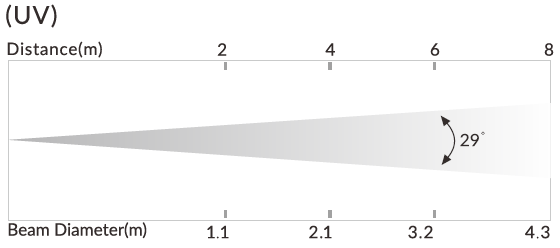

• Beam Angle: 29°

Control and Program

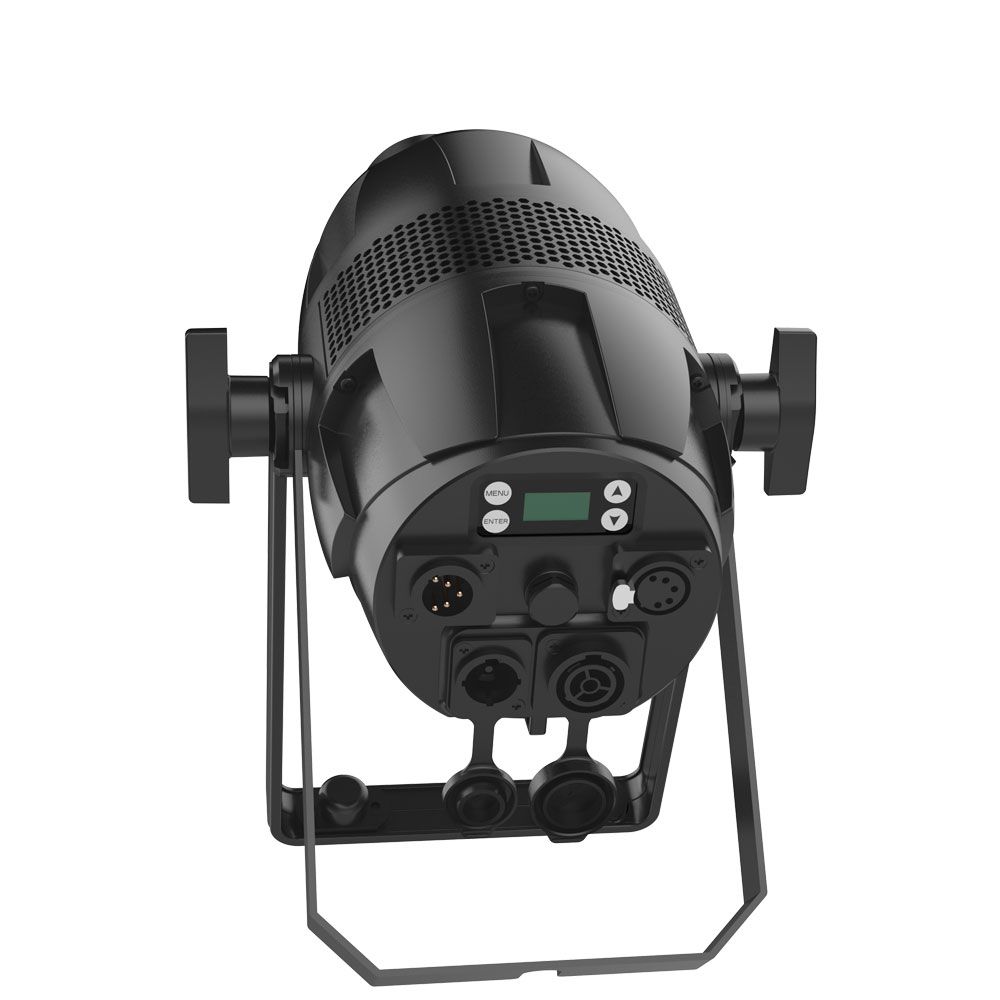

• 4 buttons
• Display: OLED display
• Protocols: DMX512,RDM
• DMX Protocol modes: 2
• Control channels: 1,2
• Upgrade the firmware via DMX link

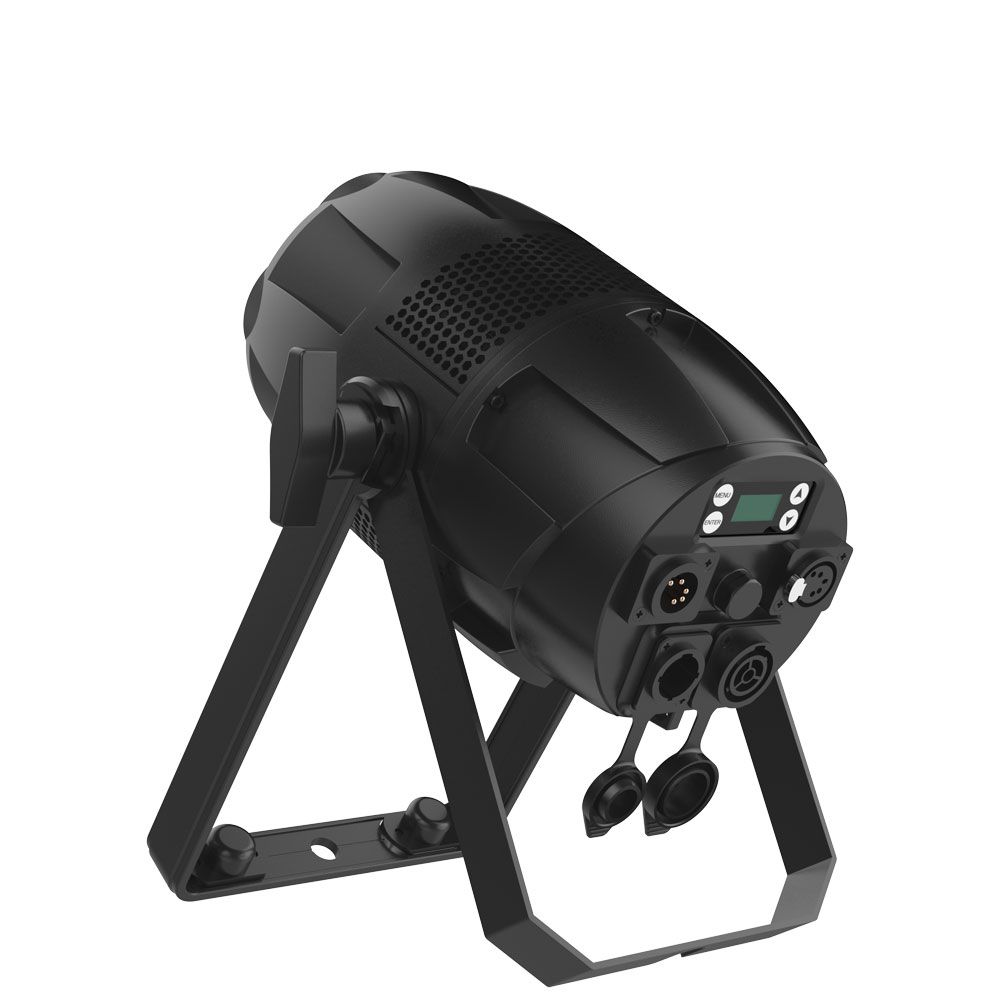

Electrical and Connectors

• Power supply with electronic auto-ranging
• Input voltage range: 100-240V~ 50/60Hz
• Power consumption: 65 W
• Waterproof Power Connector input/output
• Data in/out: 3-pin or 5-pin IP XLR

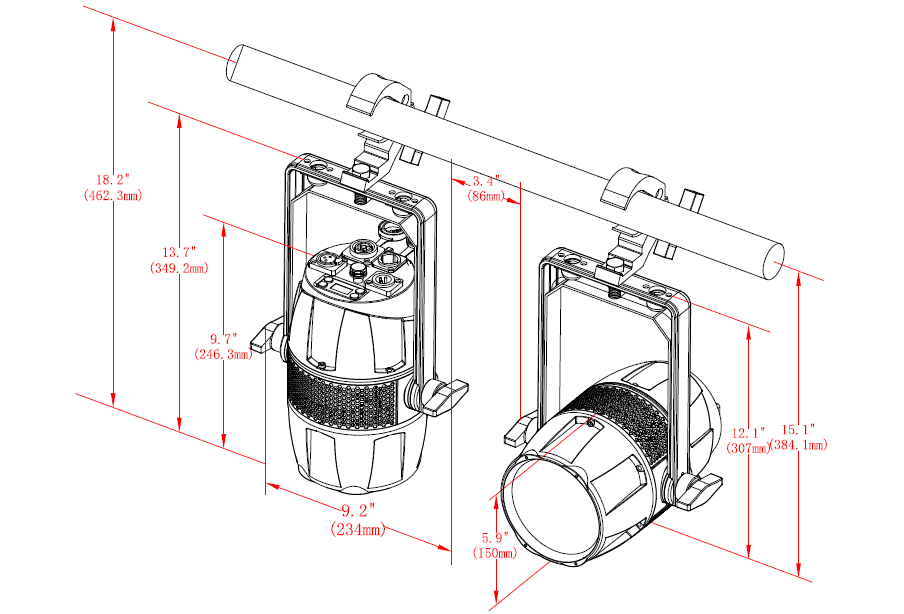

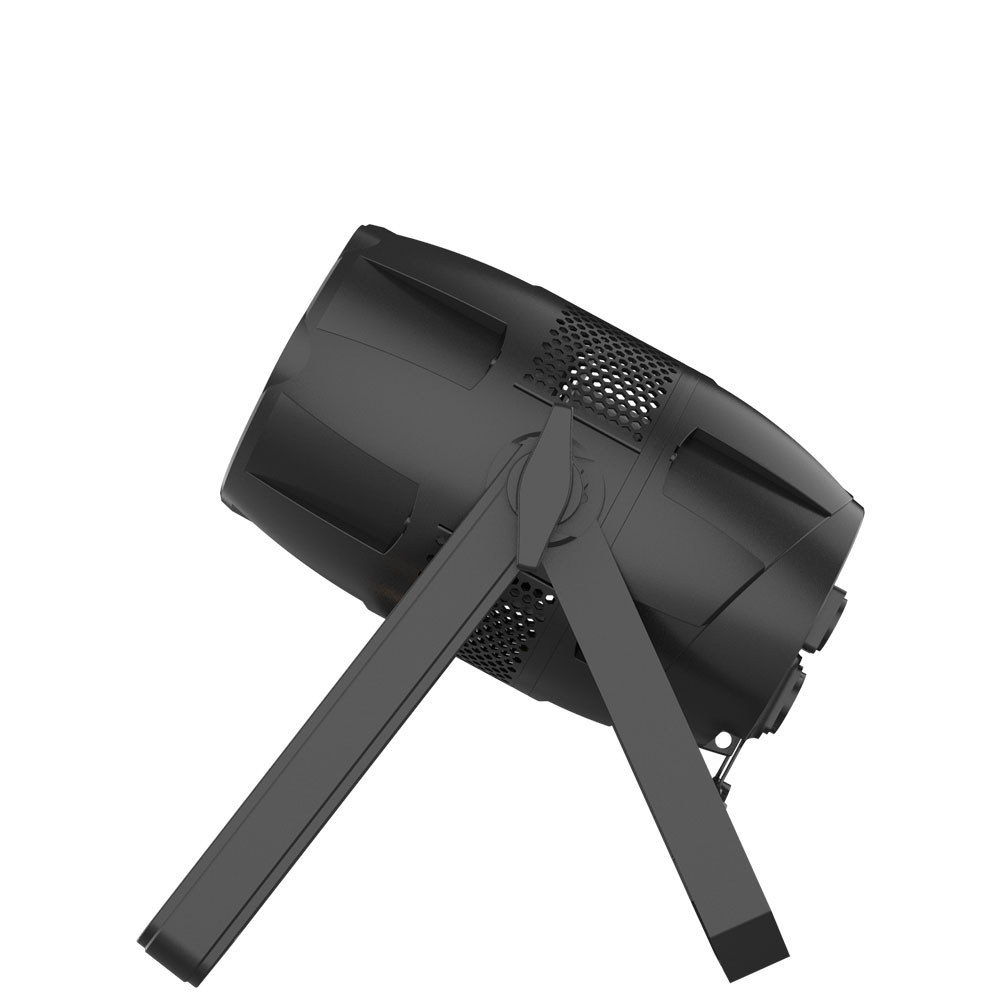

Fixture Specification

• Height: 307 mm (12")
• Width: 234 mm (9.2")
• Depth: 247 mm (9.7")
• Weight: 3.5 kg (7.7 lbs)

Work Environment

• Maximum ambient temperature: 40°C
• Maximum surface temperature: 65°C
• Minimum operating temperature: 0°C

Approvals

• CE Compliant

Installation

• Horizontally or vertically mounting are available
• Operating position is universal
• Bracket can be fast-locked and with one locking point for clamp's installaiton
• Safety Rope Hole

Included Items

• Digital User Manual
• Power Cable

Optional Accessories (with item code)

• Flight Case：3205001256（4 in 1）

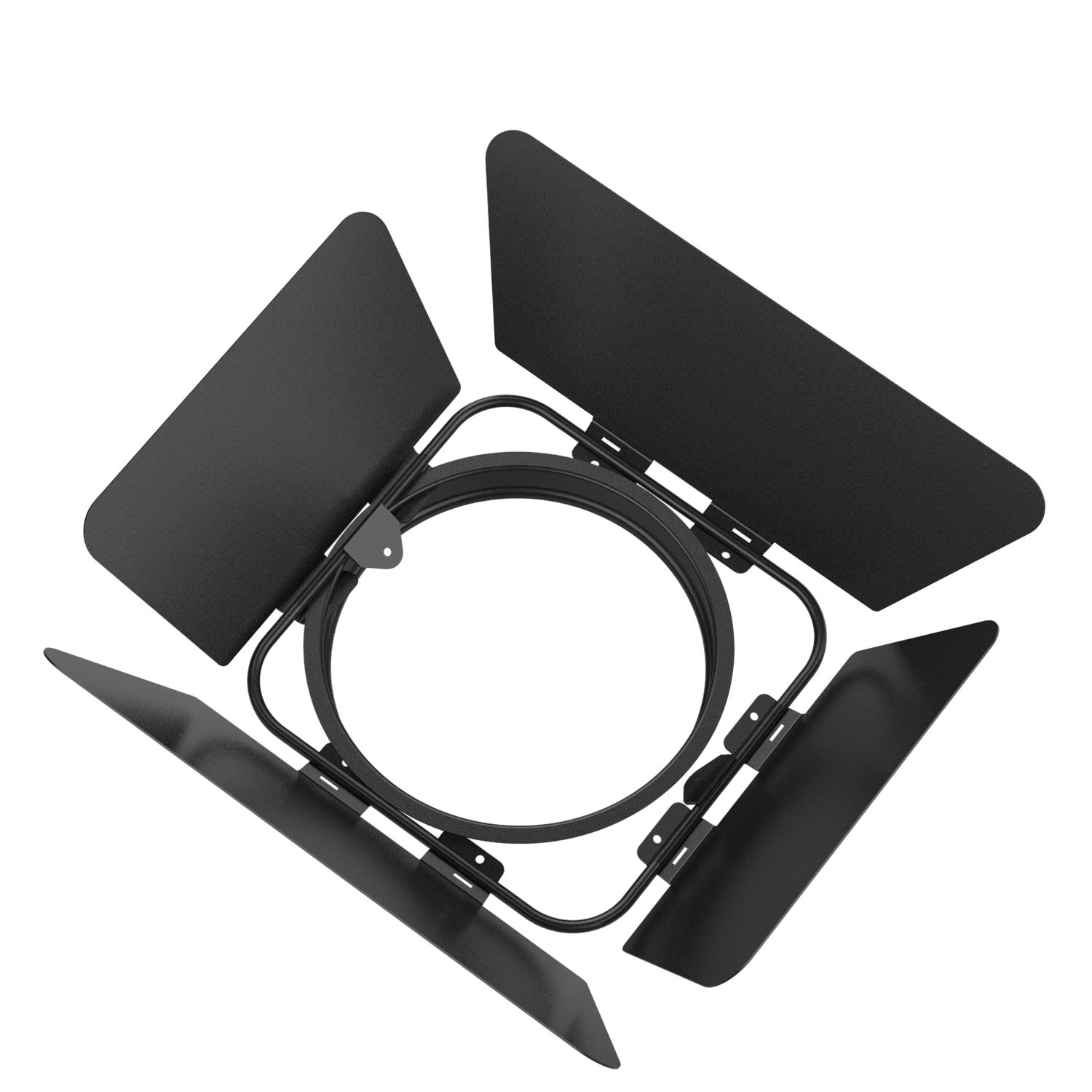

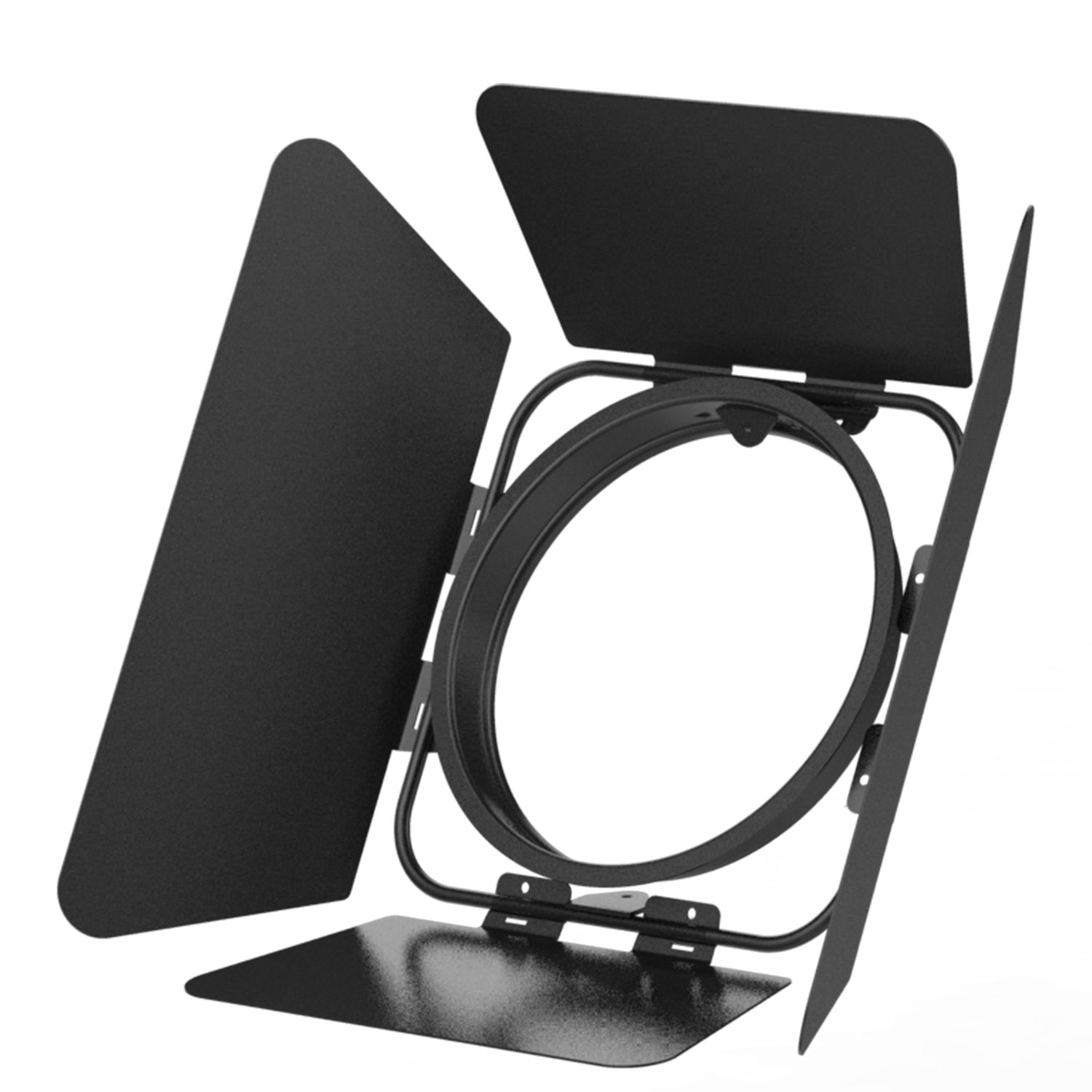

• Barn door：63581327
• Clamp：C-250B (2060001632-B)
• Signal Line：3-pin or 5-pin IP signal line
• Safety cable: 2060000200(SW-02)
