Performance

48 x 1.2W RGB/WW/CW LEDs
Light Source
20,000 hours
LED Life Expectancy
2,630 lumens
Total Lumen Output of Fixture
Ra≥98(WW) Ra≥96(CW)
Color Rendering
74°
Beam Angle
114°
Field Angle
32 units (240V, 50Hz) 16 units (100V, 60Hz)
Max. Quantity of Connections with Built-In PSU
2.2 kg (4.8 lbs)
Weight

Overview

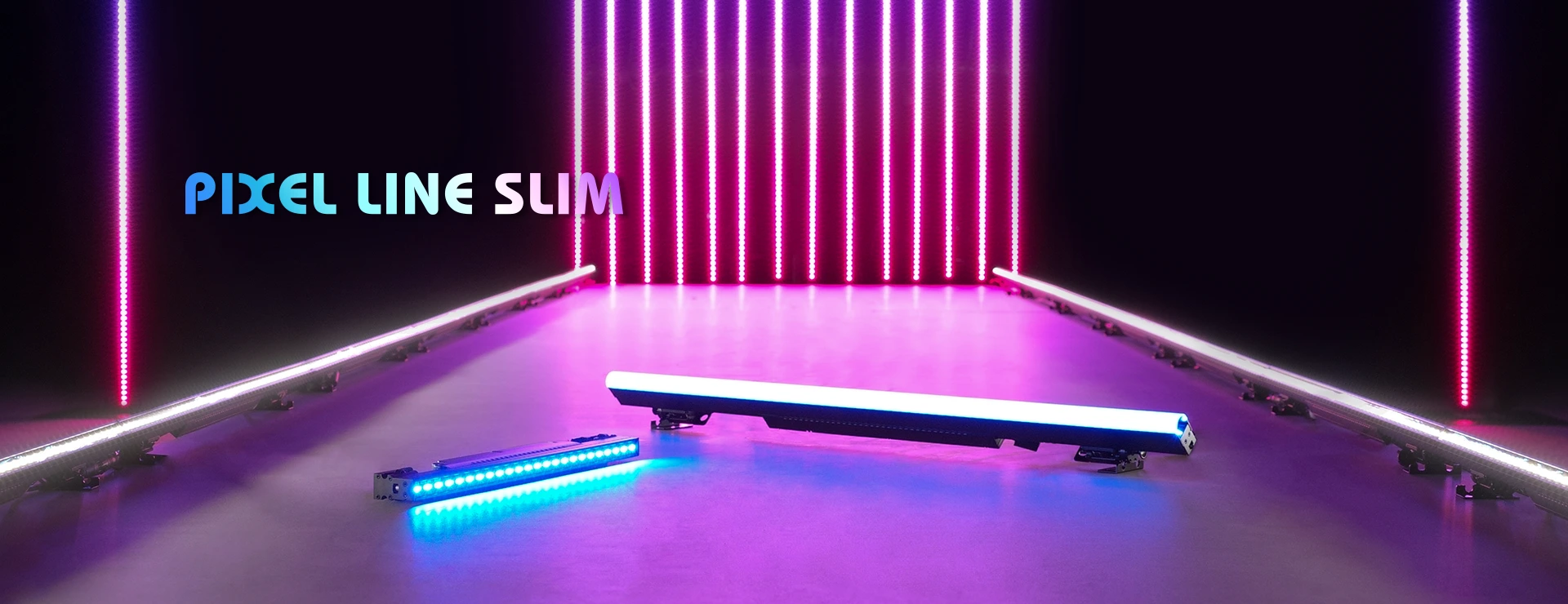

Traditional LED strips have long been limited by single-function designs, complicated installation, high maintenance demands, and low reusability. To address these challenges, ACME developed the PIXEL LINE SLIM—a versatile, IP66 fixture that redefines strip lighting by combining pixel effects, footlights, and creative geometric configurations in an ultra-slim design.

Featuring a multi-source LED array with RGB, warm white, and cool white, it delivers bold, vibrant output with high color rendering for natural, accurate color reproduction. With individual pixel control, it enables dynamic pixel mapping and eye-catching color macro effects.

Designed for maximum flexibility, the fixture offers 0 to 180° rotation using the included floor stands. When mounted on truss, its sliding track system enables flexible positioning, while the C-100 clamp enables closer mounting to trusses for a clean, streamlined rig.

Power and data are integrated into a single connector to simplify cabling and accelerate deployment. The built-in power supply supports a maximum connection load of 32 units at 240V, 50Hz, and 16 units at 100V, 60Hz. For added creative flexibility, three optional diffuser types, available in white or black, create distinct visual effects—from crisp pixel definition to smooth, continuous lines and clean geometric forms. An optional junction bar enables customized geometric configurations, taking the fixture beyond conventional linear lighting.

To further streamline touring and rental workflows, a dedicated flight case comes complete with fixtures and all essential accessories, offering a ready-to-deploy solution for efficient transportation and faster setup.

Built with an IP66-rated construction, the fixture delivers uncompromising performance even in demanding outdoor environments. From concerts and touring productions to architectural installations, the PIXEL LINE SLIM delivers exceptional lighting quality, flexible installation, intelligent system design, and creative versatility.

Technical Specification

Model

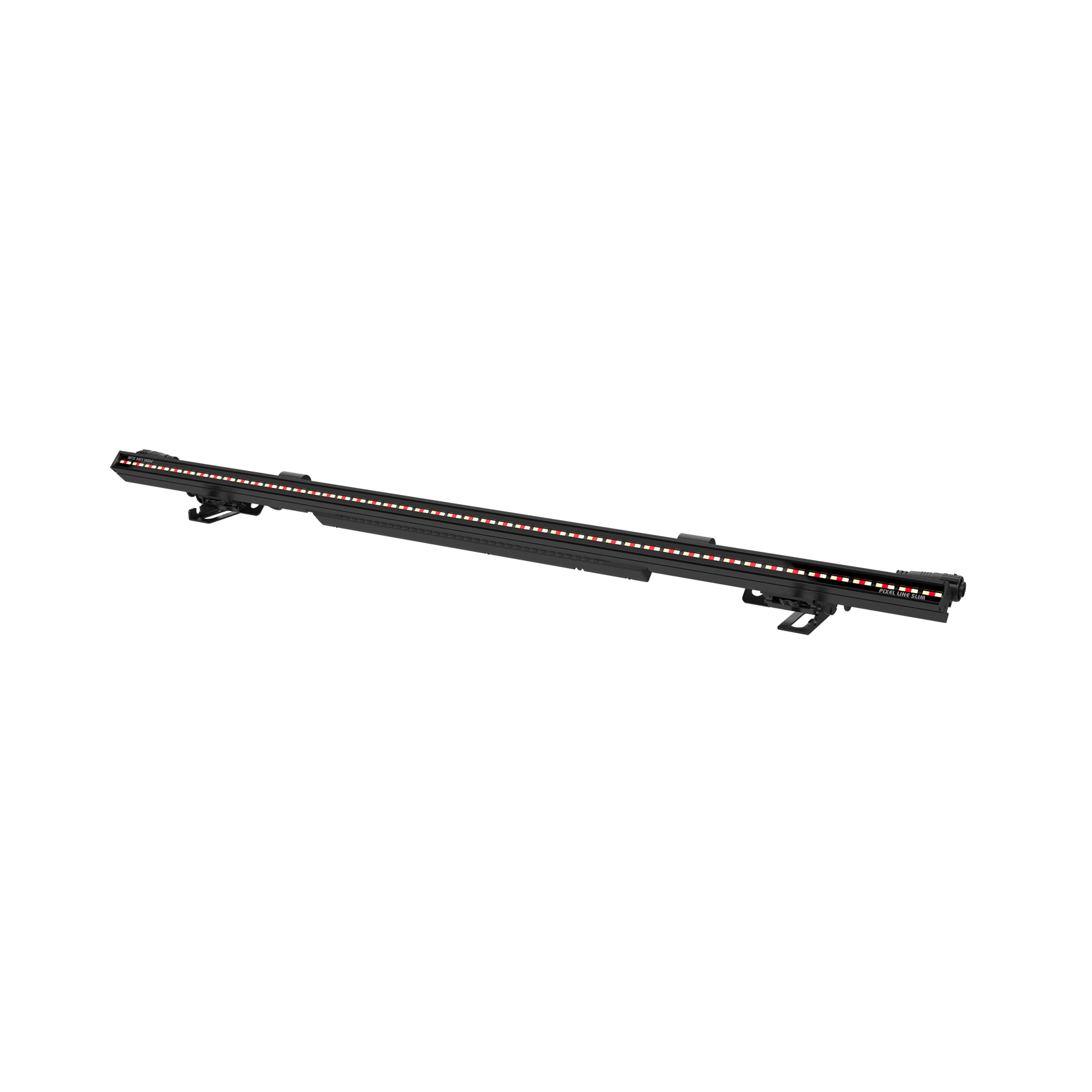

  • Model Name: PIXEL LINE SLIM
  • Model Code: SL 100 IP

Light Source

  • Light Source: 48 x 1.2W RGB/WW/CW LEDs
  • Color Temperature Output of Fixture :
    • WW: 2,700K
    • CW: 6,500K
  • Light Source Rated Life: 20,000 hours*
    *Source manufacturer specification

Photometric Data

  • Total Lumen Output of Fixture: 2,630 lumens
  • Color Rendering: Ra≥98 (WW); Ra≥96 (CW)

Optical System

  • Beam Angle : 74°
  • Field Angle : 114°

Control

  • 4 touch button control panel
  • Display: LCD display
  • Protocols: DMX512 (via JBOX Plus),RDM,Art-Net,sACN
  • DMX Protocol Modes: 11
  • Control Channels: 14/19/24/29/39/49/69/89/129/244/249
  • Firmware Upgrade: Upgrade via Ethernet (IU-02 firmware must be upgraded to V1.8 before using JBOX Plus to upgrade the PIXEL LINE SLIM)

Pan & Tilt

  • Tilt: 180° (with floor stands)

Other Effects

  • Outstanding strobe effect with variable speed
  • Smooth dimming 0-100% (4 user selectable dimming curves)
  • Individual pixel control and built-in color macro effects
  • Outstanding color mixing

Electrical and Connectors

  • Input Voltage Range: 100-240Vac; 50/60Hz
  • Power Consumption: 50W
  • Power In/Out: Hybrid connectors in/out
  • Max. Quantity of Connections with Built-In PSU:
    • 240V, 50Hz: 32 units
    • 100V, 60Hz: 16 units

Physical Information

  • Fixture Dimensions:
    • Width: 1,000 mm (39.4")
    • Depth: 82 mm (3.2")
    • Height: 45 mm (1.8")
    • Weight: 2.2 kg (4.8 lbs)

Packing Information

  • Flight Case Dimensions:
    • Width : 1,240 mm (48.8")
    • Depth : 630 mm (24.8")
    • Height : 630 mm (24.8")
    • Weight :
      • Standard: G.W.: 125 kg (275.6 lbs) (thirty-two-pack loader case)
  • Carton Dimensions:
    • Width : 1,110 mm (43.7")
    • Depth : 300 mm (11.8")
    • Height : 480 mm (18.9")
    • Weight :
      G.W.: 20.5 kg (45.2 lbs) (eight-pack loader carton)

Work Environment

  • Maximum Ambient Temperature: 45°C
  • Minimum Operating Temperature: -20°C
  • Maximum Surface Temperature: 65°C
  • Protection Rating: IP66

Approvals

  • CE compliant
  • UKCA compliant
  • cETLus compliant

Installation

  • Universal working position
  • Horizontal: Utilizing two floor stands (supplied) and two clamps (by others)
  • Horizontal Connection: Utilizing one junction bar (sold separately), the fixtures allow for multi-angle adjustment
  • Floor: Utilizing two floor stands (supplied)
  • Safety cable attachment point

Included Items

  • QR code on fixture to receive digital user manual
  • 2 floor stands (63583592)

Optional Accessories (With Order Code)

  • Flight Case:
    • Standard : Thirty-two-pack loader case (63584639)
  • Clamp : C-100 (2060001693)
  • Safety Cable: SW-02 (2060000200-B)
  • Hybrid Extension Cable:
    • 0.5 m: 3004000334
    • 1 m: 3004000330
    • 2 m: 3004000326
    • 5 m: 3004000329
    • 10 m: 3004000327
    • 20 m: 3004000331
  • JBOX (one power cable included)
  • JBOX Plus (one power cable included)
  • Junction Bar: 63584478
  • Omega Bracket: 3002003003
  • Omega Bracket Holder: 63584502
  • Round Diffuser: Black (3005006813), White (3005006897)
  • Square Diffuser: Black (3005006814), White (3005006895)
  • Triangular Diffuser: Black (3005006815), White (3005006896)
Dimensions
Photometrics
Video
Effects

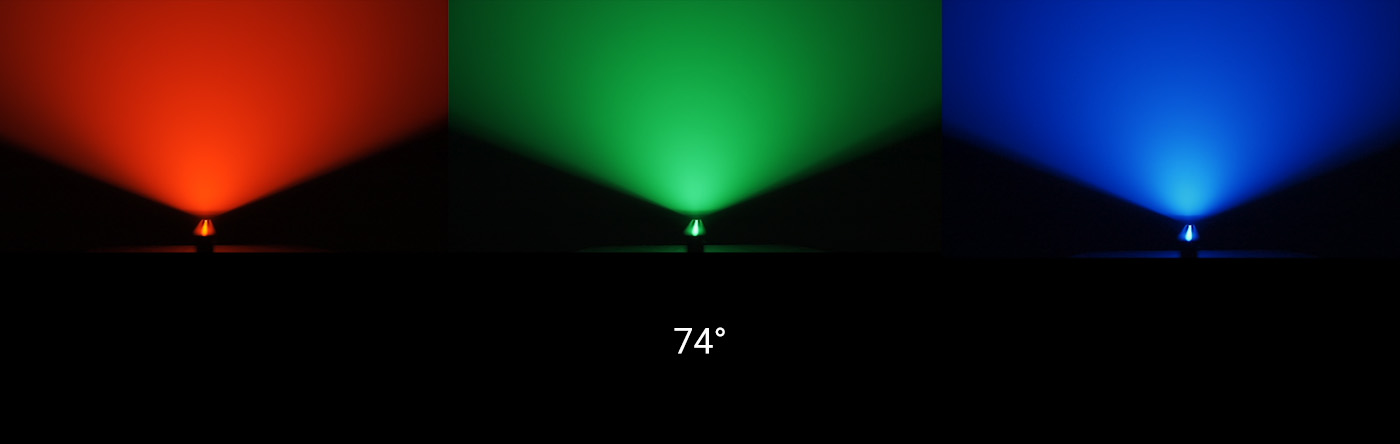

Beam Angle

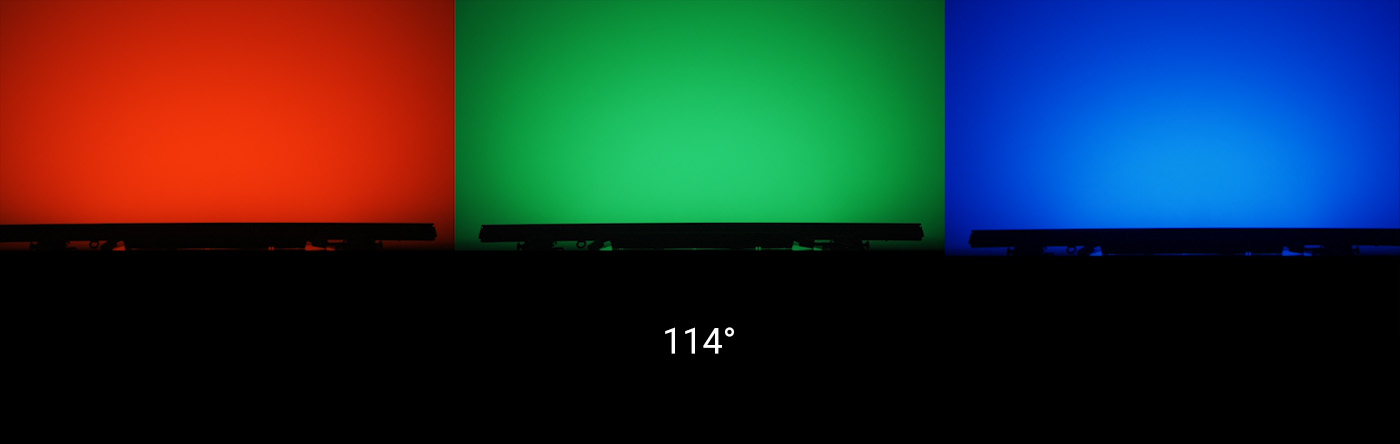

Field Angle
Download
Show More
Show Less
Optional Accessories

ITEM: PIXEL LINE SLIM (SL 100 IP)

ORDER CODE : 63584639

LOADING Q'TY: Thirty-two-pack loader case

CASE WEIGHT: 47.5 kg (104.7 lbs)

MEAS: 1,240 x 630 x 630 mm (48.8'' x 24.8'' x 24.8'')

NAME: SW-02

ORDER CODE : 2060000200-B

MATERIAL: Φ2.5 Steel wire

NAME: Hybrid Extension Cable

ORDER CODE : 3004000334 (0.5m), 3004000330 (1m), 3004000326 (2m), 3004000329 (5m), 3004000327 (10m), 3004000331 (20m)

NAME: C-100

ORDER CODE : 2060001693

MAX.load: 100 kg (2.2 lbs)

NAME: JBOX

Protection Rating: IP66

NAME: JBOX Plus

Protection Rating: IP66

NAME: Junction Bar

ORDER CODE : 63584478

NAME: Omega Bracket

ORDER CODE : 3002003003

NAME: Omega Bracket Holder

ORDER CODE : 63584502

NAME: Round Black Diffuser

ORDER CODE : 3005006813

APPLICABLE MODEL: PIXEL LINE SLIM

NAME: Round White Diffuser

ORDER CODE : 3005006897

APPLICABLE MODEL: PIXEL LINE SLIM

NAME: Square Black Diffuser

ORDER CODE : 3005006814

APPLICABLE MODEL: PIXEL LINE SLIM

NAME: Square White Diffuser

ORDER CODE : 3005006895

APPLICABLE MODEL: PIXEL LINE SLIM

NAME: Triangular Black Diffuser

ORDER CODE : 3005006815

APPLICABLE MODEL: PIXEL LINE SLIM

NAME: Triangular White Diffuser

ORDER CODE : 3005006896

APPLICABLE MODEL: PIXEL LINE SLIM
