Performance

24 x 1.2W RGB/WW/CW LEDs
Light Source
20,000 hours
LED Life Expectancy
1,320 lumens
Total Lumen Output of Fixture
Ra≥98(WW) Ra≥96(CW)
Color Rendering
66°
Beam Angle
112°
Field Angle
64 units (240V, 50Hz) 32 units (100V, 60Hz)
Max. Quantity of Connections with Built-In PSU
1.6 kg (3.5 lbs)
Weight

Overview

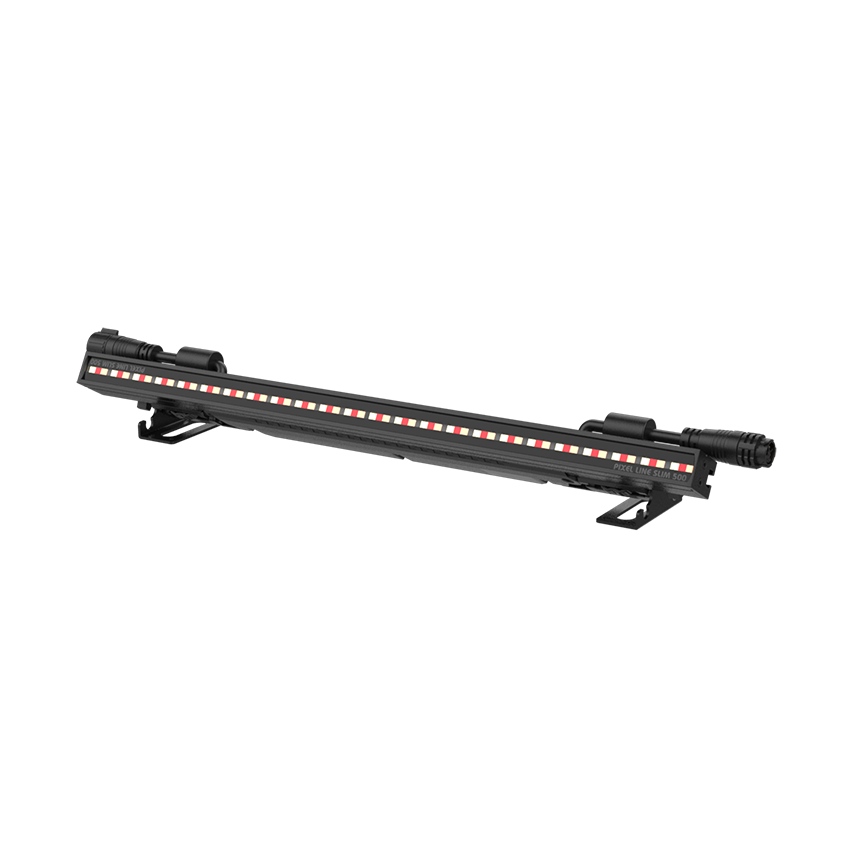

The ACME PIXEL LINE SLIM 500 delivers the full creative capabilities of the PIXEL LINE SLIM in a compact half-meter format, making it ideal for productions with limited space and rigging capacity. The PIXEL LINE SLIM 500 also can be connected side by side with the PIXEL LINE SLIM, offering greater flexibility in lighting layout.

Equipped with 24 × 1.2W RGB, warm white, and cool white LEDs, the fixture produces vibrant colors and smooth color mixing. The warm white source achieve an ultra-high color rendering of Ra≥98, ensuring accurate reproduction of skin tones and scenic details. Individual pixel control and built-in color macro effects enable dynamic color chases, while high-energy strobe effects add rhythmic intensity and visual impact to every performance.

Featuring a lightweight and ultra-slim design, the PIXEL LINE SLIM 500 simplifies transportation, handling, and deployment. It supports both horizontal and floor mounting, functioning as either a strip light or footlight. Combining power and data in a single connector reduces cabling complexity and improves setup efficiency.

For added creative flexibility, three optional diffuser types, each available in black or white, transform defined pixel looks into smooth, continuous lines and clean geometric forms. An optional junction bar allows fixtures to be connected and adjusted to multiple angles, expanding installation possibilities.

With an IP66 rating, the PIXEL LINE SLIM 500 delivers reliable performance in demanding outdoor environments. Combining versatility and efficiency in a compact form, the fixture adapts effortlessly to concerts, live events, and architectural lighting.

Technical Specification

Model

  • Model Name: PIXEL LINE SLIM 500
  • Model Code: SL 50 IP

Light Source

  • Light Source: 24 x 1.2W RGB/WW/CW LEDs
  • Color Temperature Output of Fixture :
    • WW: 2,700K
    • CW: 6,500K
  • Light Source Rated Life: 20,000 hours*
    *Source manufacturer specification

Photometric Data

  • Total Lumen Output of Fixture: 1,320 lumens
  • Color Rendering: Ra≥98 (WW); Ra≥96 (CW)

Optical System

  • Beam Angle : 66°
  • Field Angle : 112°

Control

  • 4 touch button control panel
  • Display: LCD display
  • Protocols: DMX512 (via JBOX Plus),RDM,Art-Net,sACN
  • DMX Protocol Modes: 9
  • Control Channels: 14/19/24/29/39/49/69/124/129
  • Firmware Upgrade: Upgrade via Ethernet (IU-02 firmware must be upgraded to V1.8 before using JBOX Plus to upgrade the PIXEL LINE SLIM 500)

Pan & Tilt

  • Tilt: 180° (with floor stands)

Other Effects

  • Outstanding strobe effect with variable speed
  • Smooth dimming 0-100% (4 user selectable dimming curves)
  • Individual pixel control and built-in color macro effects
  • Outstanding color mixing

Electrical and Connectors

  • Input Voltage Range: 100-240Vac; 50/60Hz
  • Power Consumption: 30W
  • Power In/Out: Hybrid connectors in/out
  • Max. Quantity of Connections with Built-In PSU:
    • 240V, 50Hz: 64 units
    • 100V, 60Hz: 32 units

Physical Information

  • Fixture Dimensions:
    • Width: 500 mm (19.7")
    • Depth: 82 mm (3.2")
    • Height: 42 mm (1.7")
    • Weight: 1.6 kg (3.5 lbs)

Packing Information

  • Carton Dimensions:
    • Width : 610 mm (24")
    • Depth : 300 mm (11.8")
    • Height : 485 mm (19.1")
    • Weight :
      G.W.: 15.8 kg (34.8 lbs) (eight-pack loader carton)

Work Environment

  • Maximum Ambient Temperature: 45°C
  • Minimum Operating Temperature: -20°C
  • Maximum Surface Temperature: 65°C
  • Protection Rating: IP66

Approvals

  • CE compliant
  • UKCA compliant
  • cETLus compliant

Installation

  • Universal working position
  • Built-in positioning system for combining units
  • Horizontal: Utilizing two floor stands (supplied) and two clamps (by others)
  • Remove two floor stands (supplied) and install one junction bar (sold separately) to enable multi-angle adjustment
  • Floor: Utilizing two floor stands (supplied)
  • Safety cable attachment point

Included Items

  • QR code on fixture to receive digital user manual
  • 2 floor stands (63584696)

Optional Accessories (With Order Code)

  • Clamp : C-100 (2060001693)
  • Safety Cable: SW-02 (2060000200-B)
  • Hybrid Extension Cable:
    • 0.5 m: 3004000334
    • 1 m: 3004000330
    • 2 m: 3004000326
    • 5 m: 3004000329
    • 10 m: 3004000327
    • 20 m: 3004000331
  • JBOX (one power cable included)
  • JBOX Plus (one power cable included)
  • Junction Bar: 63584478
  • Round Diffuser: Black (3005006959), White (3005006956)
  • Square Diffuser: Black (3005006960), White (3005006957)
  • Triangular Diffuser: Black (3005006961), White (3005006958)
Dimensions
Photometrics
Video
Effects

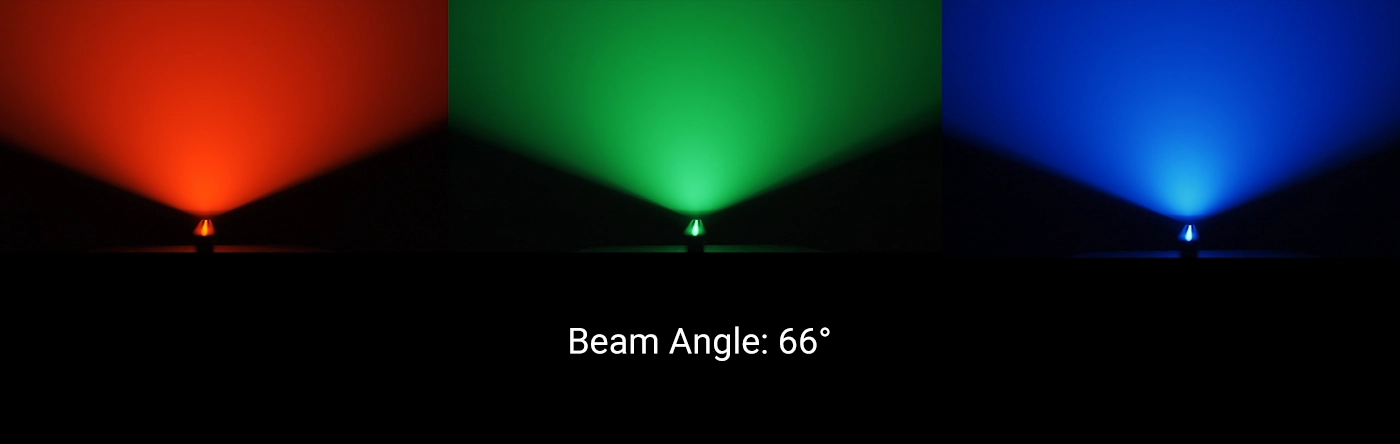

Beam Angle

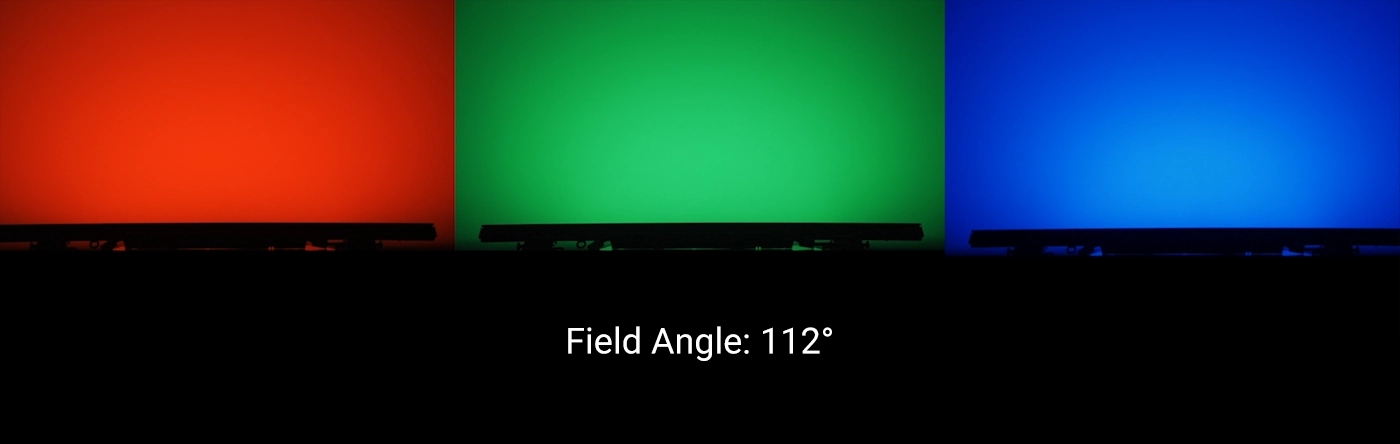

Field Angle
Download
  Version Review Download Date
Spec.Sheet
PIXEL LINE SLIM 500 Specification Sheet re  dw  2026-10-26
Drawings
PIXEL LINE SLIM 500 Hanging Dimension dw  2026-10-26
PIXEL LINE SLIM 500 Dimension dw  2026-10-26
Get Library
Show More
Show Less
Optional Accessories

NAME: SW-02

ORDER CODE : 2060000200-B

MATERIAL: Φ2.5 Steel wire

NAME: Hybrid Extension Cable

ORDER CODE : 3004000334 (0.5m), 3004000330 (1m), 3004000326 (2m), 3004000329 (5m), 3004000327 (10m), 3004000331 (20m)

NAME: C-100

ORDER CODE : 2060001693

MAX.load: 100 kg (2.2 lbs)

NAME: JBOX

Protection Rating: IP66

NAME: JBOX Plus

Protection Rating: IP66

NAME: Junction Bar

ORDER CODE : 63584478

NAME: Round Black Diffuser

ORDER CODE : 3005006959

APPLICABLE MODEL: PIXEL LINE SLIM 500

NAME: Round White Diffuser

ORDER CODE : 3005006956

APPLICABLE MODEL: PIXEL LINE SLIM 500

NAME: Square Black Diffuser

ORDER CODE : 3005006960

APPLICABLE MODEL: PIXEL LINE SLIM 500

NAME: Square White Diffuse

ORDER CODE : 3005006957

APPLICABLE MODEL: PIXEL LINE SLIM 500

NAME: Triangular Black Diffuser

ORDER CODE : 3005006961

APPLICABLE MODEL: PIXEL LINE SLIM 500

NAME: Triangular White Diffuser

ORDER CODE : 3005006958

APPLICABLE MODEL: PIXEL LINE SLIM 500
