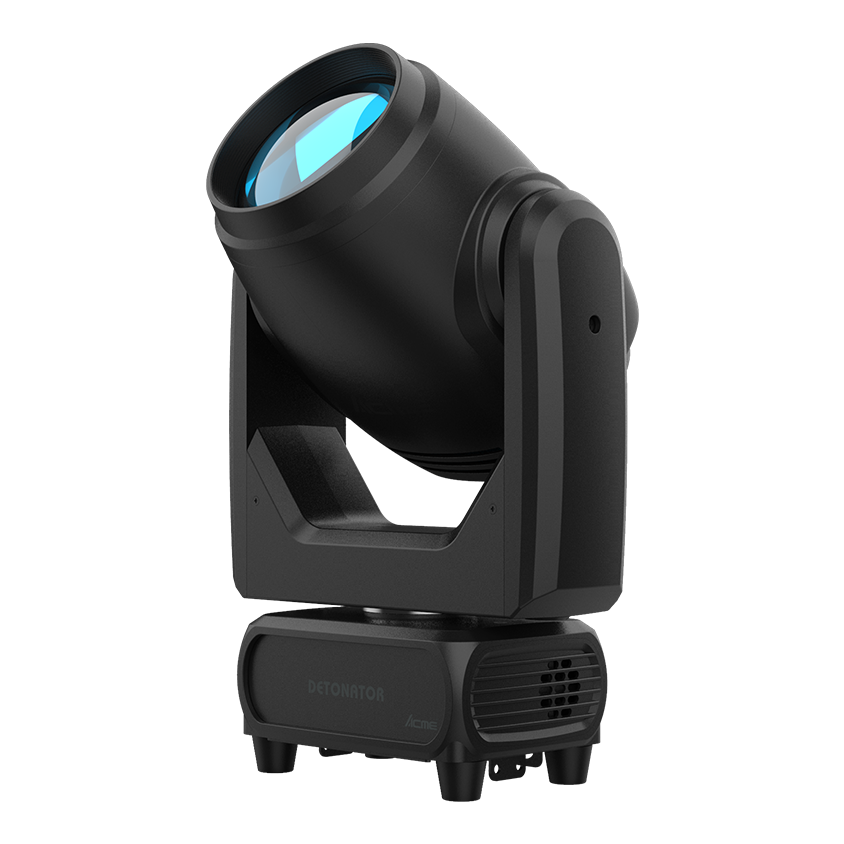

Model

• Model Name: DETONATOR
• Model Code: BEAM 200

Light Source

• Light Source: 200W LED engine
• Total Lumen Output of Fixture: 2,600 lumens
• Color Temperature Output of Fixture: 10,000K
• Life Expectancy: 20,000 hours*
  *Source manufacturer specification

Optical System

• Beam Angle : 2.4°
• Standard Mode: Ra>70
• Diameter of Frontal Lens: 125 mm

Control

• 4 touch button control panel
• Display: LCD display
• Protocols: DMX512,RDM
• DMX Protocol Modes: 1
• Control Channels: 16
• Firmware Upgrade: Upgrade via DMX link or USB stick

Pan & Tilt

• Pan Movement: 540°
• Tilt Movement: 270°
• Automatic Pan/Tilt position correction
• Resolution: 16 bit
• Fixation: Pan/Tilt lock

Colors

• 1 Color Wheel: 10 colors, plus open

Static Gobos

• 1 Static Gobo Wheel:
• • 10 gobos, plus open
  • Gobo: Ф108 mm, lmage: Ф5 mm

Other Effects

• Outstanding strobe effect with variable speed
• Smooth dimming 0-100% (4 user selectable dimming curves)
• Motorized linear iris
• Motorized focus system

Electrical and Connectors

• Input Voltage Range: 100-240Vac; 50/60Hz
• Power Consumption: 160W
• Power In/Out: Power connector in/out
• Data In/Out: 3-pin or 5-pin XLR

Physical Information

• Fixture Dimensions:
• • Width: 286 mm (11.3")
  • Depth: 166 mm (6.6")
  • Height: 434 mm (17.1")
  • Weight: 8.1 kg (17.9 lbs)

Packing Information

• Carton Dimensions:
• • Width : 380 mm (15.0")
  • Depth : 345 mm (13.6")
  • Height : 490 mm (19.3")
  • Weight :
    G.W.: 10.2 kg (22.5 lbs) (One-pack loader carton)

Work Environment

• Maximum Ambient Temperature: 40°C
• Minimum Operating Temperature: 0°C
• Maximum Surface Temperature: 60°C
• Protection Rating: IP20

Approvals

• CE compliant
• UKCA compliant

Installation

• Horizontal or vertical mounting
• Universal working position
• Truss hanging in two clamps
• Safety cable attachment point

Included Items

• Digital user manual
• Power cable

Optional Accessories (With Order Code)

• Clamp : C-100A (2060001635)
• Safety Cable: SW-02 (2060000200)
• Signal Cable: 3-pin or 5-pin signal cable
