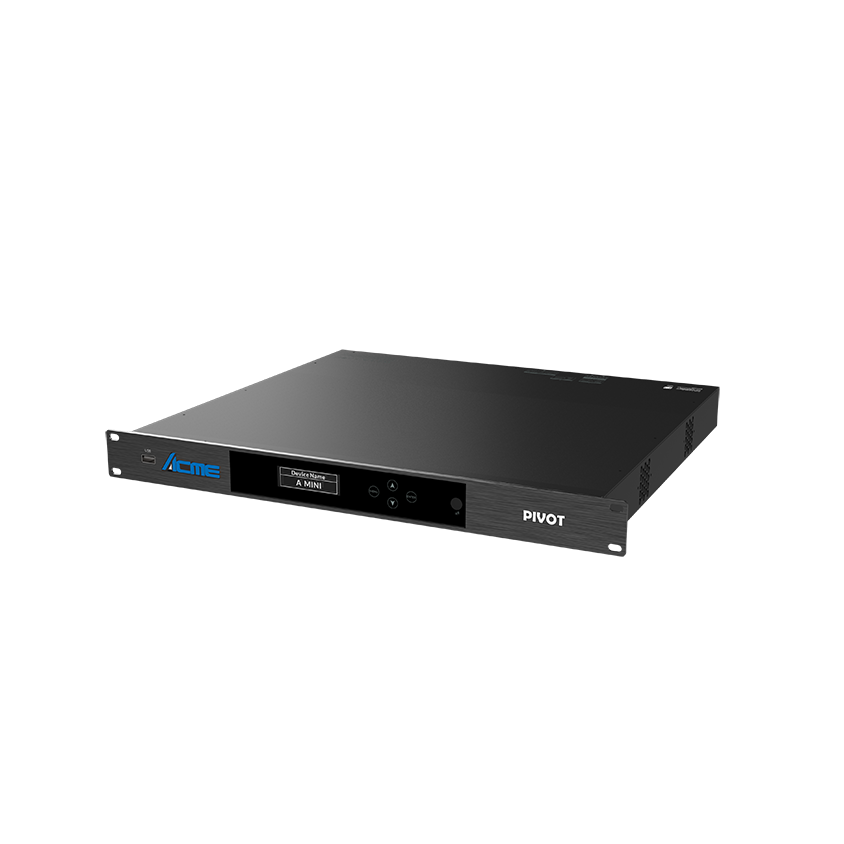

Model

• Model Name: PIVOT
• Model Code: A MINI

Control

• 4 touch button control panel
• Display: OLED display
• Protocols: DMX512,RDM,Art-Net,sACN

Other Effects

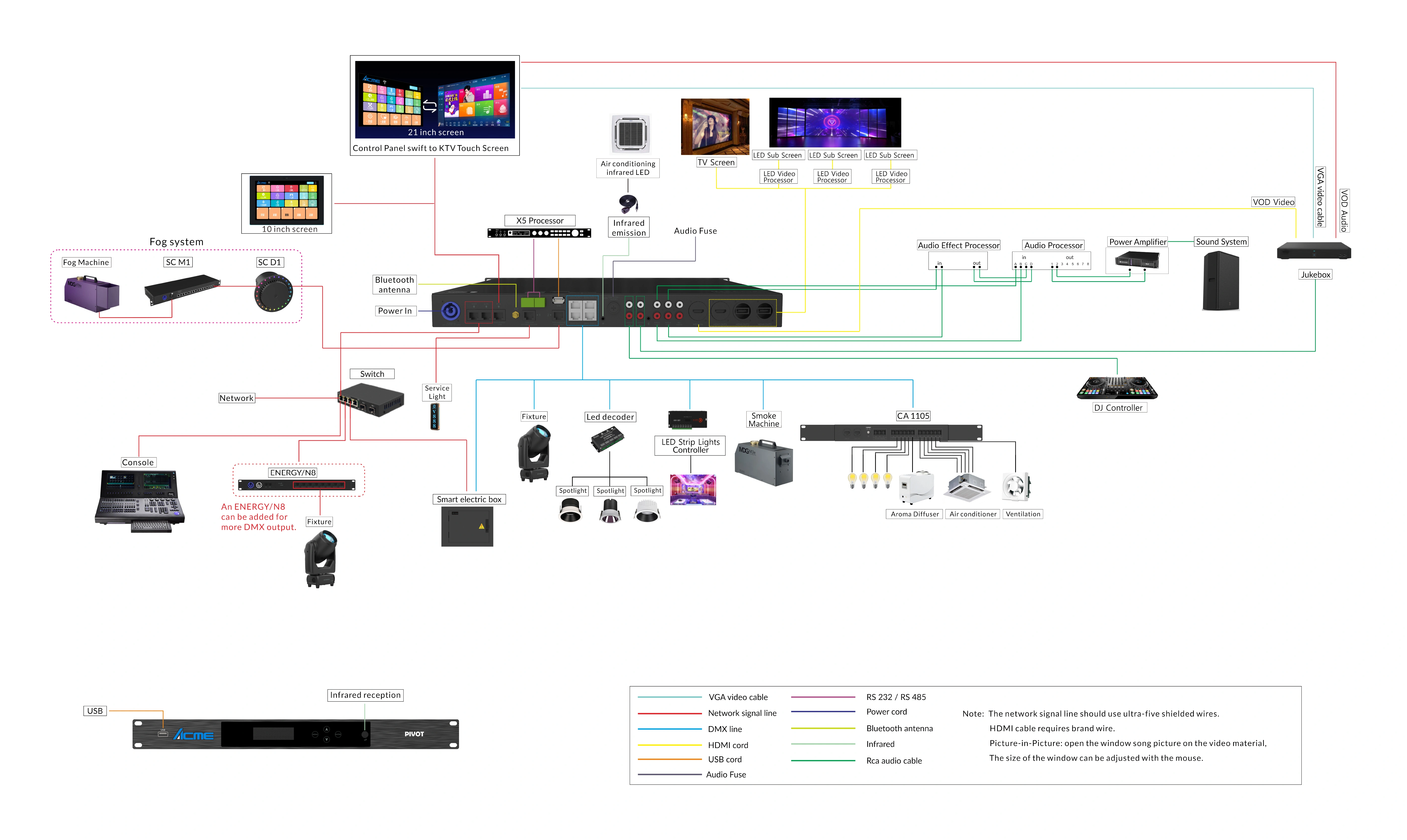

• Synchronizes sound, lighting, LED displays, fog machines and other equipment for a fully integrated entertainment experience
• Supports audio playback function
• Supports remote cloud updates of audio, lighting and video content
• 4G and Wi-Fi connectivity
• Supports Android and iOS devices for convenient system control and management

Electrical and Connectors

• Input Voltage Range: 100-240Vac; 50/60Hz
• Power Consumption: 25W
• Power In/Out: Power connector in
• Network Ports:
• • 1 x RJ45 WAN out
  • 1 x RJ45 LAN out
  • 1 x RJ45 PoE out
  • 1 x RJ45 LAN out for Doorplate Lamp only
  • 1 x RJ45 out for Fog Machine and Other Services
• DMX Ports:
• • 4 x RJ45 DMX out
• Audio Ports:
• • 2 x Audio in
  • 3 x Audio out
• Video Ports:
• • 1 x HDMI in
  • 3 x HDMI out
• Control & Communication Ports:
• • 1 x RS232 out
  • 1 x RS485 out
  • 1 x 3.5 mm Infrared Emitter
  • 1 x 3.5 mm Infrared Receiver
• USB Ports:
• • 2 x USB in/out

Physical Information

• Product Dimension:
• • Weight : 5 kg (11 lbs)
  • Width : 482 mm (19")
  • Width : 422 mm (16.6")
  • Height : 44 mm (1.7")

Packing Information

• Carton Dimensions:
• • Width : 575 mm (22.6")
  • Depth : 515 mm (20.3")
  • Height : 155 mm (6.1")
  • Weight :
    G.W.: 8 kg (17.6 lbs) (one-pack loader carton)

Work Environment

• Maximum Ambient Temperature: 40°C
• Minimum Operating Temperature: 0°C
• Maximum Surface Temperature: 40°C
• Protection Rating: IP20

Installation

• Suitable for standard cabinet, 1U

Included Items

• QR code on fixture to receive digital user manual
• Power cable
